Model Code Instruction

In order to let customers select the required water pump more quickly and accurately, we have made some minor adjustments to the model suffix of BLDC PUMP.

We divided the original ‘A’ into ‘PWM’ and ‘VR’. ‘A’ means that the speed can be adjusted. There are three ways to adjust the speed: PWM signal speed adjustment, 0–5V analog signal speed adjustment, and manual potentiometer speed adjustment.

In fact, we need to use two different control boards for these three speed adjustment methods. The first is a board designed specifically for PWM signals. The second is a board designed for analog signals and manual potentiometers.

Sorry for confusing you. If any further questions, please don’t hesitate to submit your message.

Old Model Code

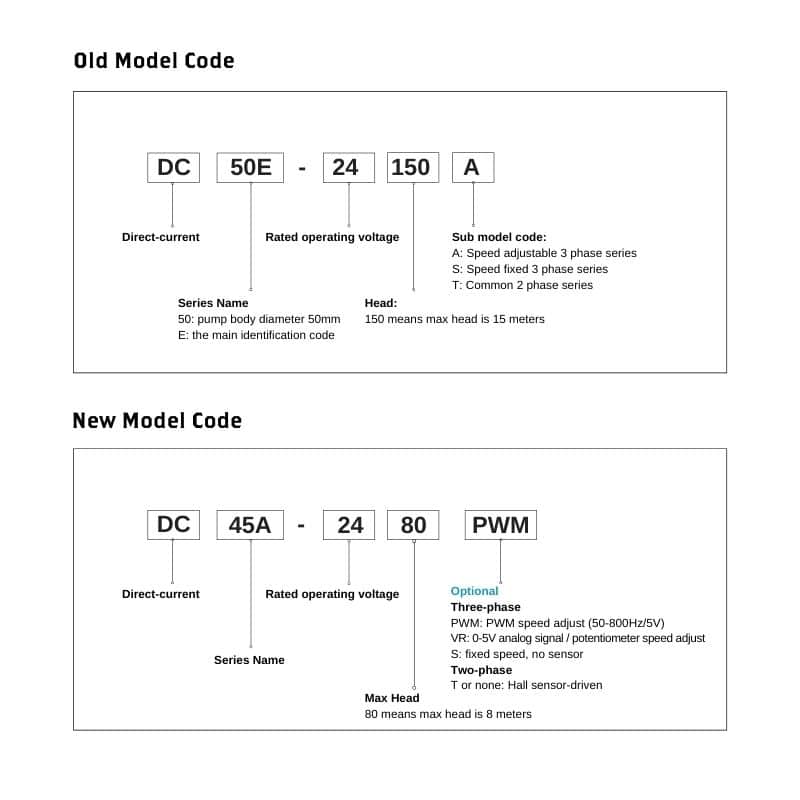

DC | 50E | -24 | 150 | A Direct-current Series Name 50: body Ø50mm E: main ID code Rated Voltage Head 150 = max 15m Sub Model Code A: Speed adj 3-ph S: Fixed 3-ph T: Common 2-ph EXAMPLE: DC 50E -24 150 A
Fig. 1 -- Old model code structure with segment annotations

New Model Code

DC | 45A | -24 | 80 | PWM Direct-current Series Name Rated Voltage Max Head 80 = max 8m Optional Suffix PWM: PWM speed adj VR: 0-5V / potent. S: fixed, no sensor T/none: 2-ph Hall EXAMPLE: DC 45A -24 80 PWM
Fig. 2 -- New model code structure with updated suffix annotations
