DC60B

Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn OEM Solution

Additional information

Rated Voltage

12V, 24V

Max Head

10M, 12M

Max Flow

3100L/H, 3450L/H

Inlet Diameter

25mm

Outlet Diameter

25mm

Dimensions

100×150.3x123mm

Noise

~40dB

Liquid Temperature

-40-100°C

Sub-Model List

MODELVOLTAGE(V)CURRENT(A)MAX FLOW(L/H)MAX HEAD(M)
DC60B-12100126.6310010
DC60B-24120244.2345012

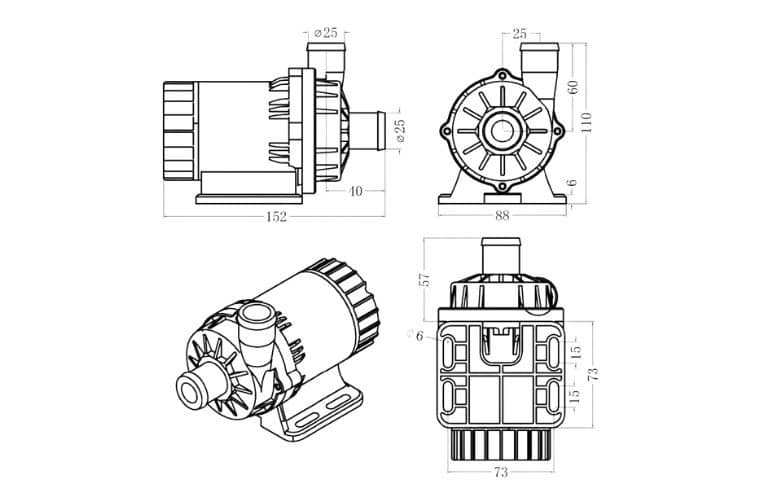

Dimensions

DC60B-dimensions

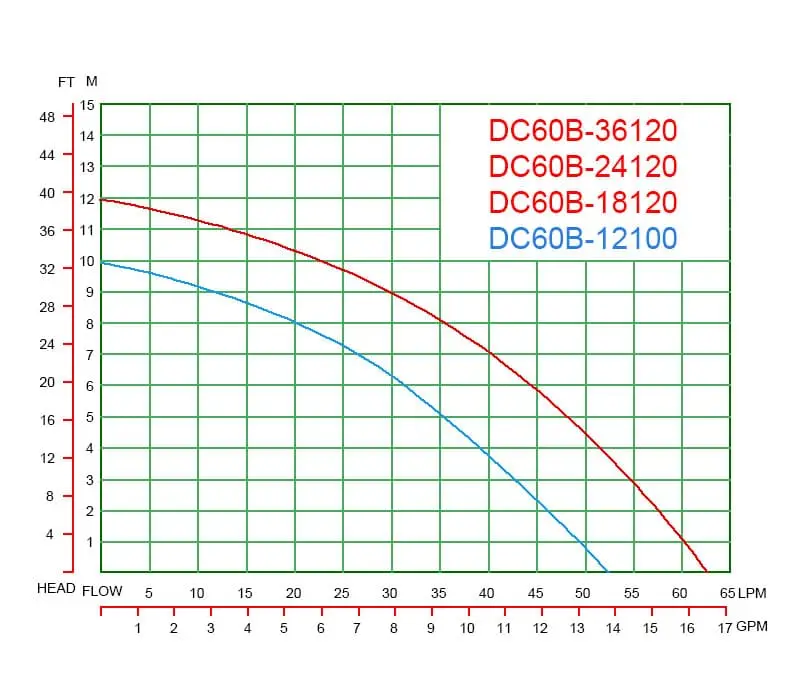

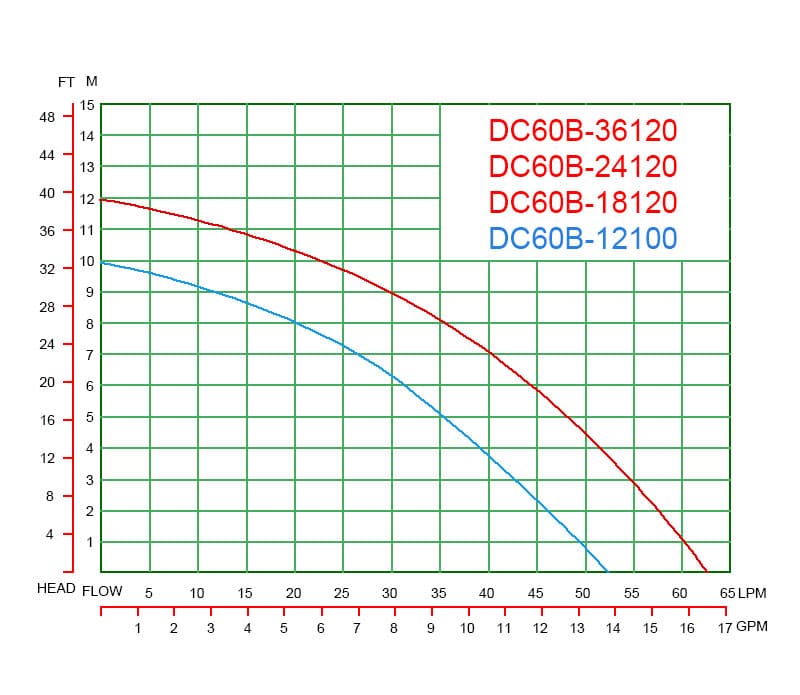

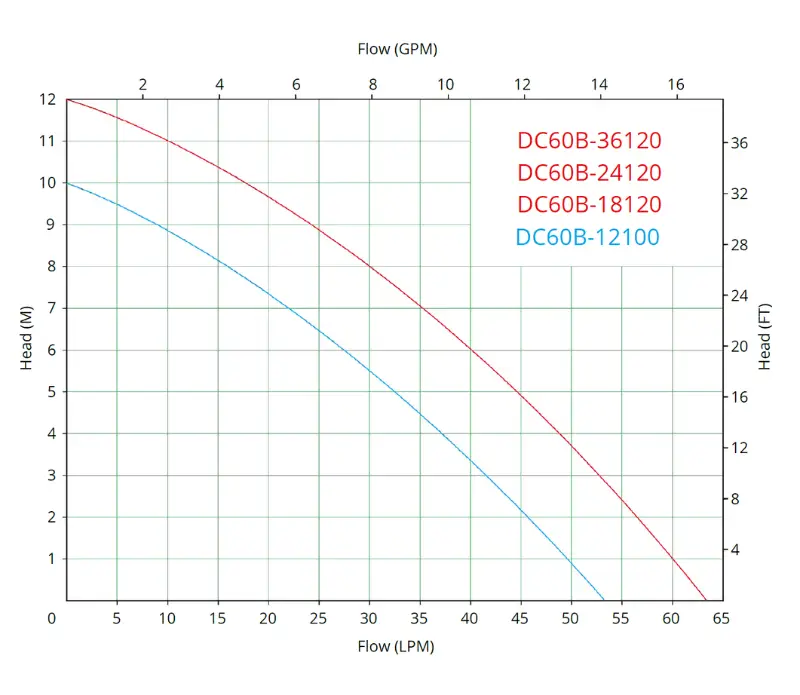

Performance Curve

DC60B-curve-graph
