Pump Serie: DC56B

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions113mm*83mm*99mm
Weight0.48kg
Inlet Diameter20mm
Outlet Diameter20mm
Pump Shell MaterialPA66+30%GF (can be customized to other materials)

Technical Documentation

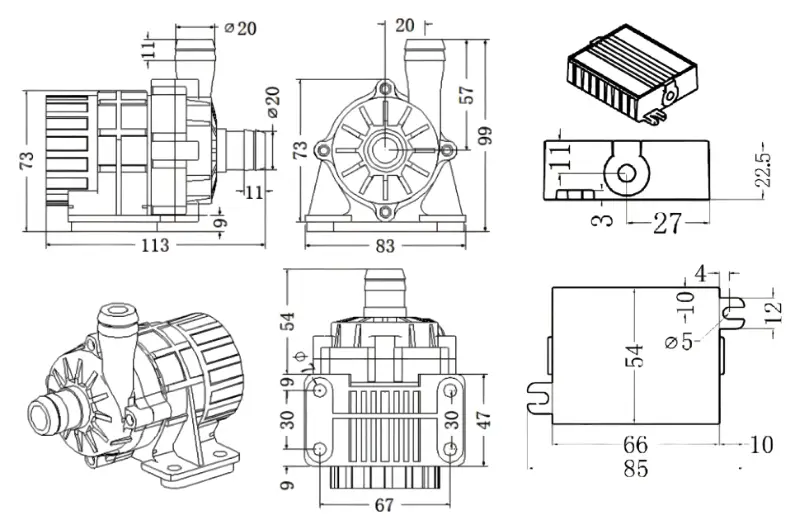

dc56b dimensions
Dimension Drawing

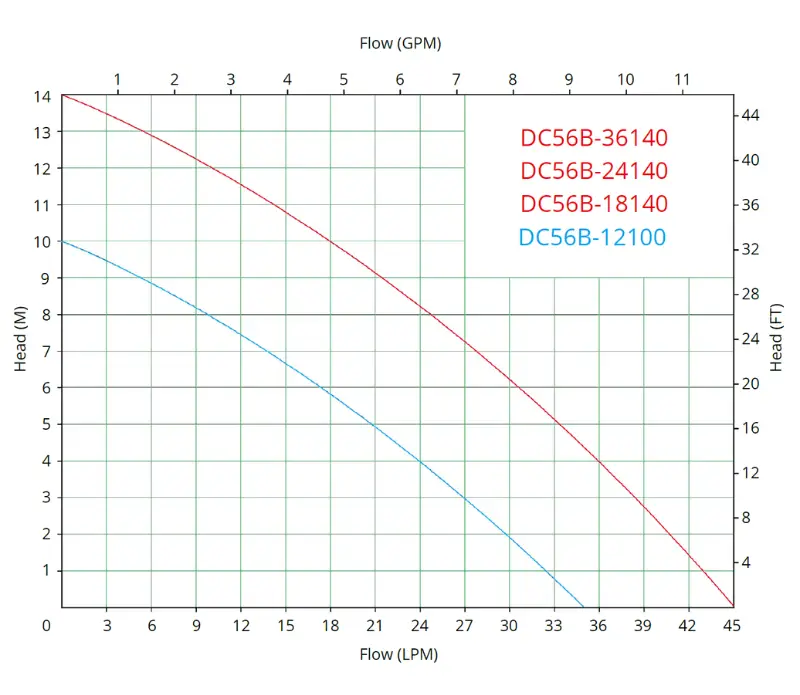

dc56b performance
Performance Curves

Available Models

DC56B-12100

  • Voltage: DC 12V
  • Max Head: 10 M
  • Max Flow: 2100 L/H
View Details →

DC56B-18140

  • Voltage: DC 18V
  • Max Head: 14 M
  • Max Flow: 2700 L/H
View Details →

DC56B-24140

  • Voltage: DC 24V
  • Max Head: 14 M
  • Max Flow: 2700 L/H
View Details →

DC56B-36140

  • Voltage: DC 36V
  • Max Head: 14 M
  • Max Flow: 2700 L/H
View Details →
