DC40A

Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn OEM Solution

Additional information

Rated Voltage

12V, 18V, 24V

Max Head

4.5M, 5M, 6M

Max Flow

620L/H, 720L/H, 840L/H

Inlet Diameter

14mm

Outlet Diameter

14mm

Dimensions

87.5×61.8×43.8mm

Noise

~40dB

Liquid Temperature

-40-60°C

Sub-Model List

MODELVOLTAGE(V)CURRENT(A)MAX FLOW(L/H)MAX HEAD(M)
DC40A-1220120.454002
DC40A-1230120.85003
DC40A-1240121.16004
DC40A-1245121.26204.5
DC40A-1850181.27205
DC40A-2430240.45003
DC40A-2440240.656004
DC40A-2450240.97205
DC40A-2460241.28406

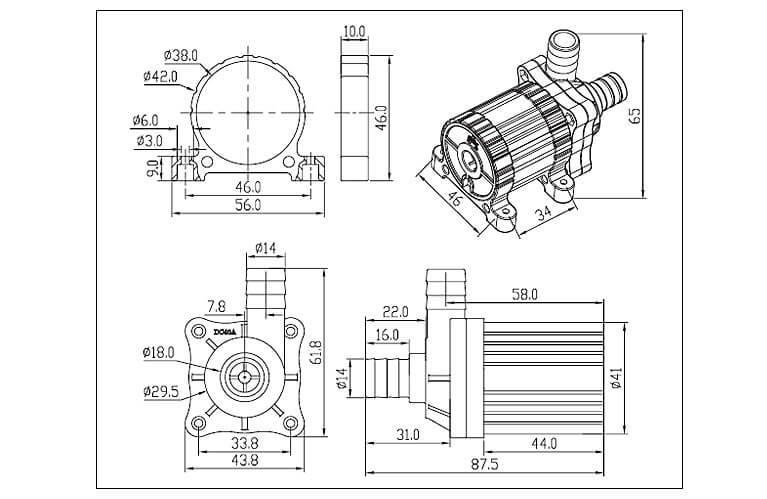

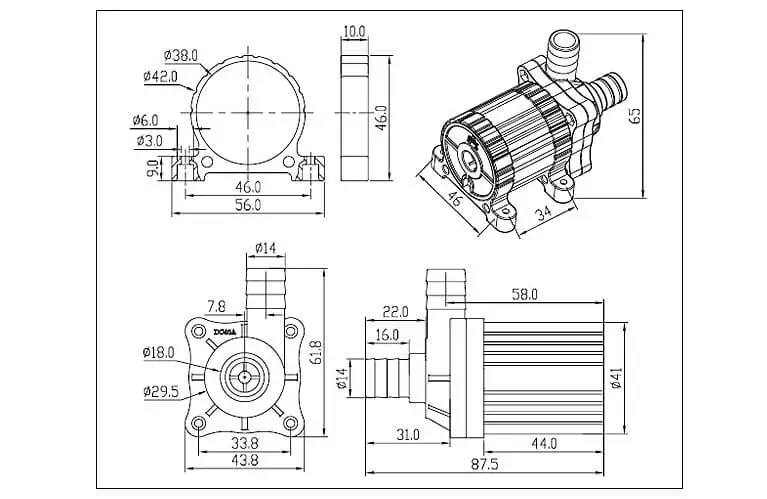

Dimensions

DC40A-6

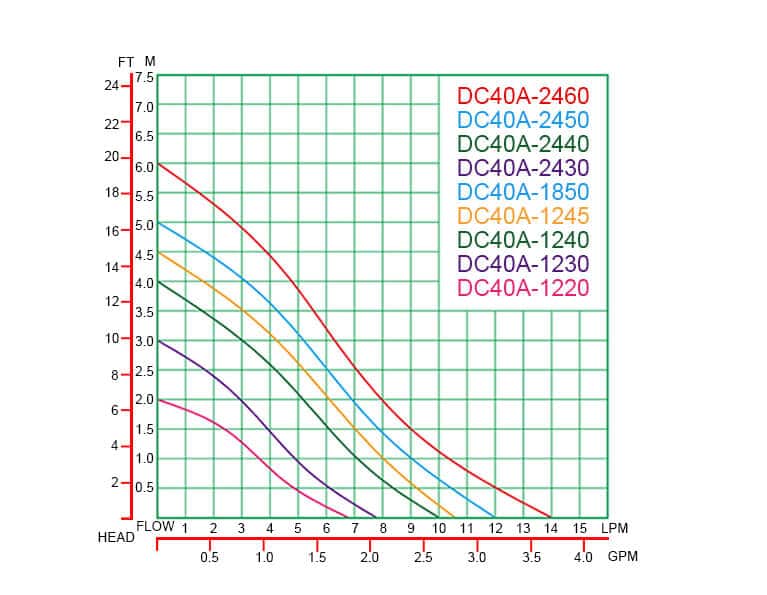

Performance Curve

DC40A-7
