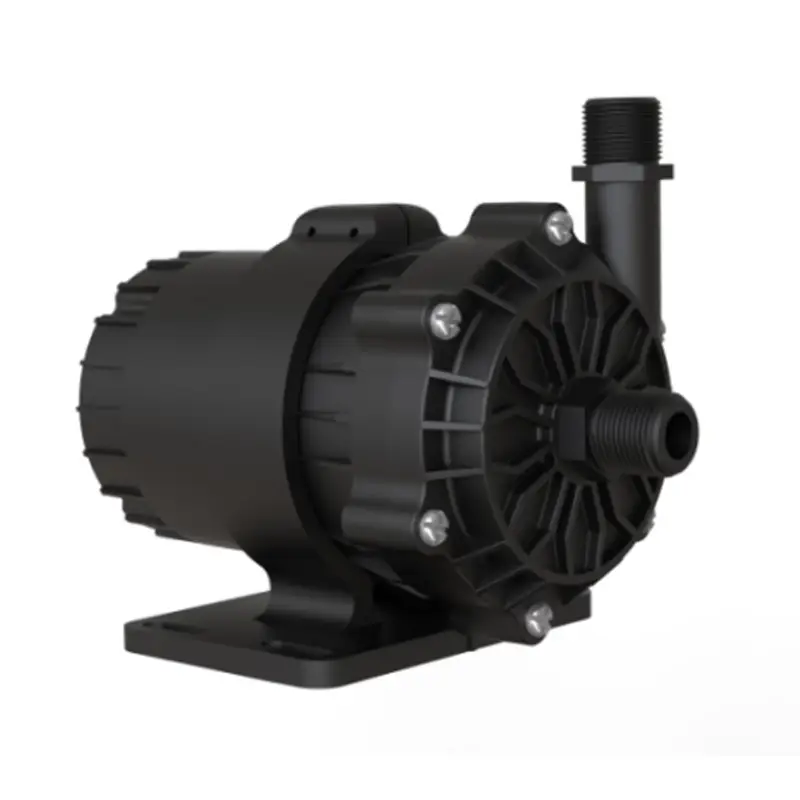

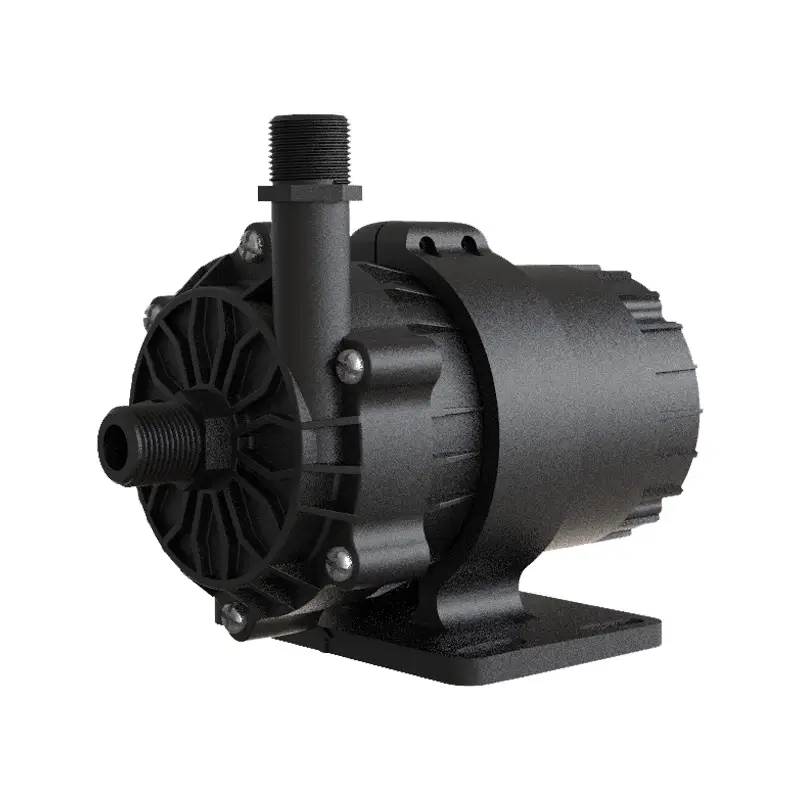

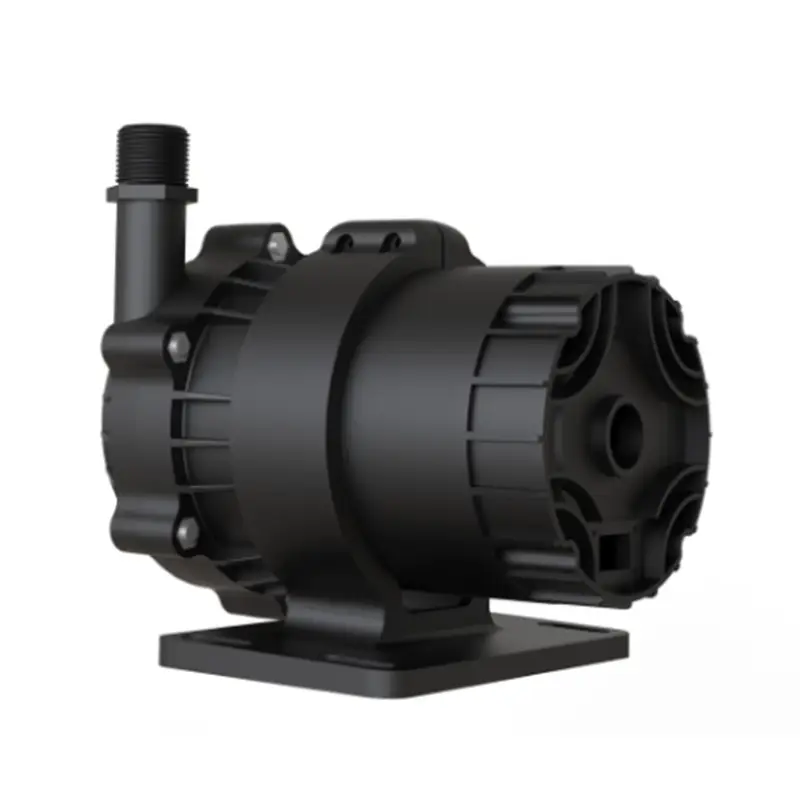

Pump Serie: DC95E

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions223mm*149mm*184mm
Weight4.2kg
Inlet DiameterG3/4″ thread
Outlet DiameterG3/4″ thread
Pump Shell MaterialPA66+30%GF (can be customized to other materials)

Technical Documentation

dc95e dimensions

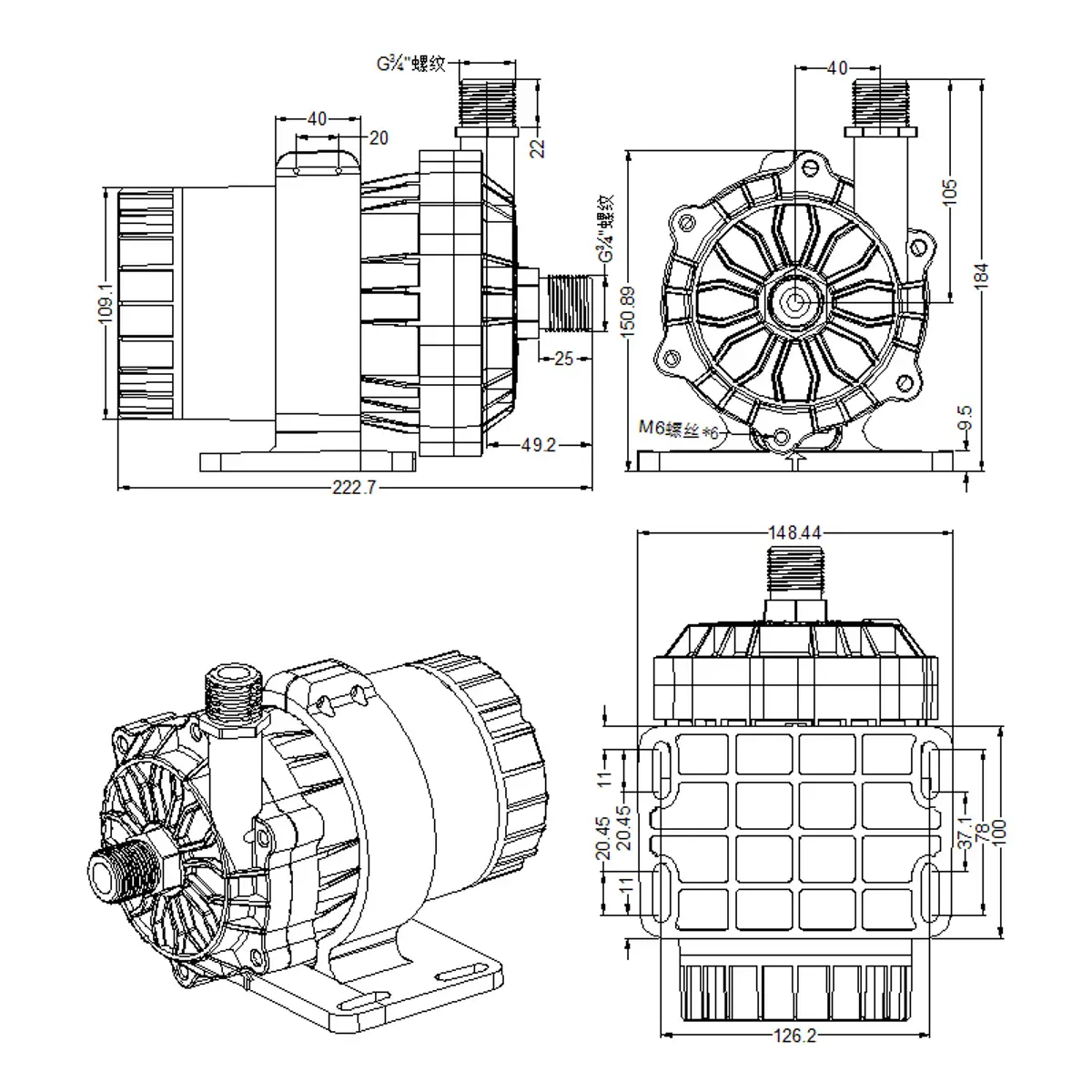

Dimension Drawing
dc95e performance

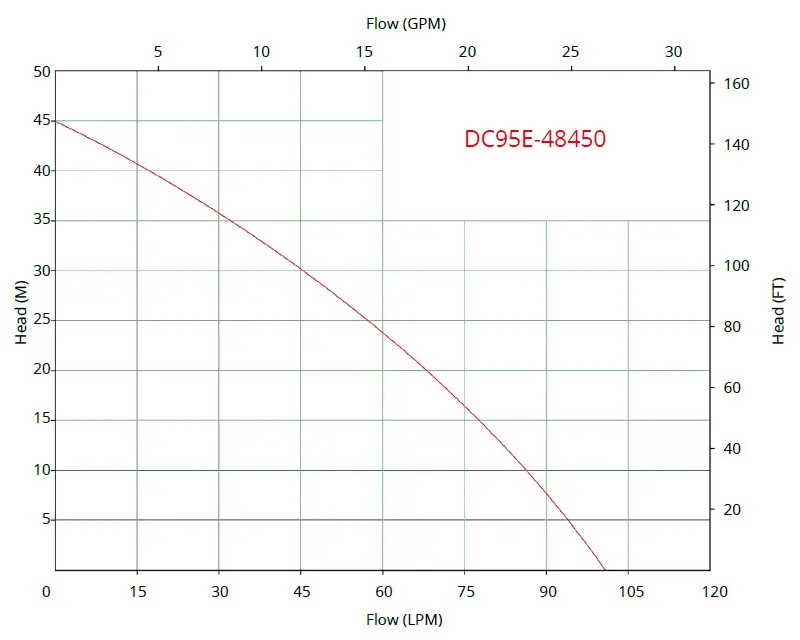

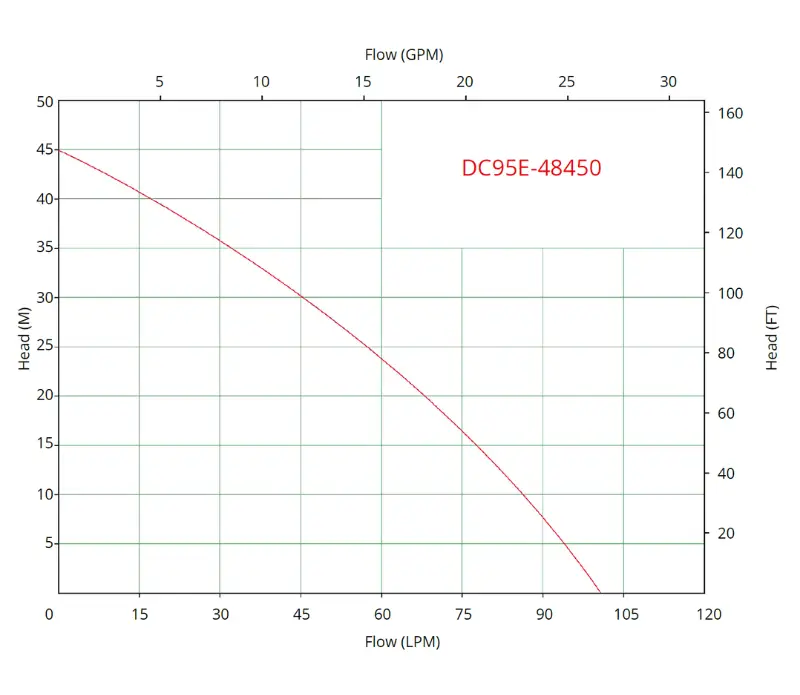

Performance Curves

Available Models

DC95E-48450

  • Voltage: DC 48V
  • Max Head: 45 M
  • Max Flow: 6000 L/H
View Details →
