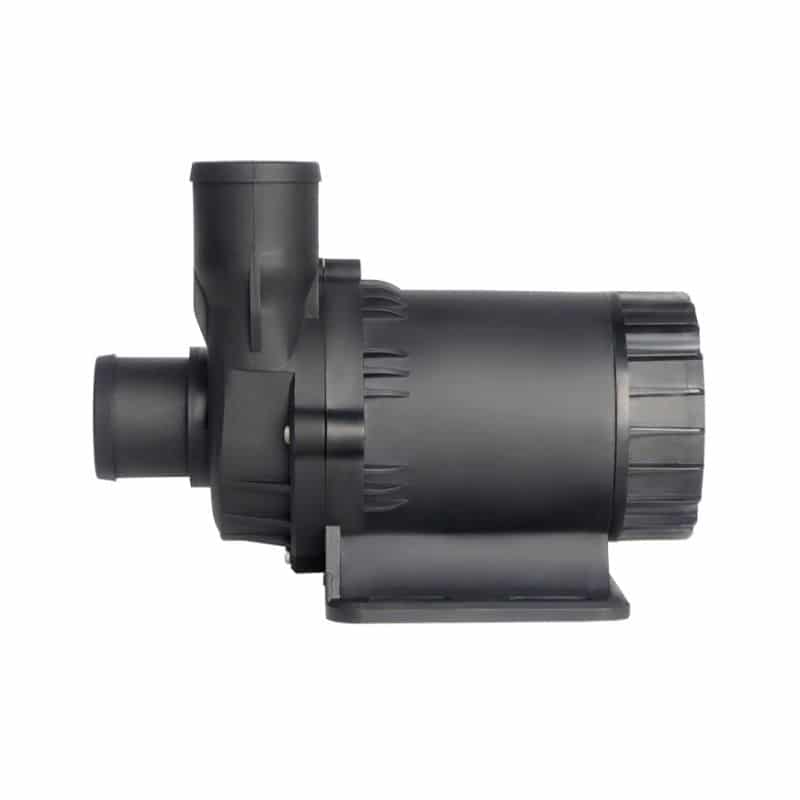

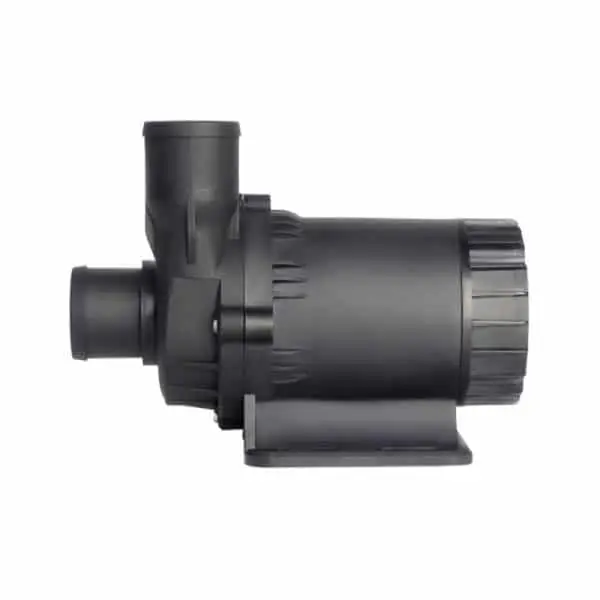

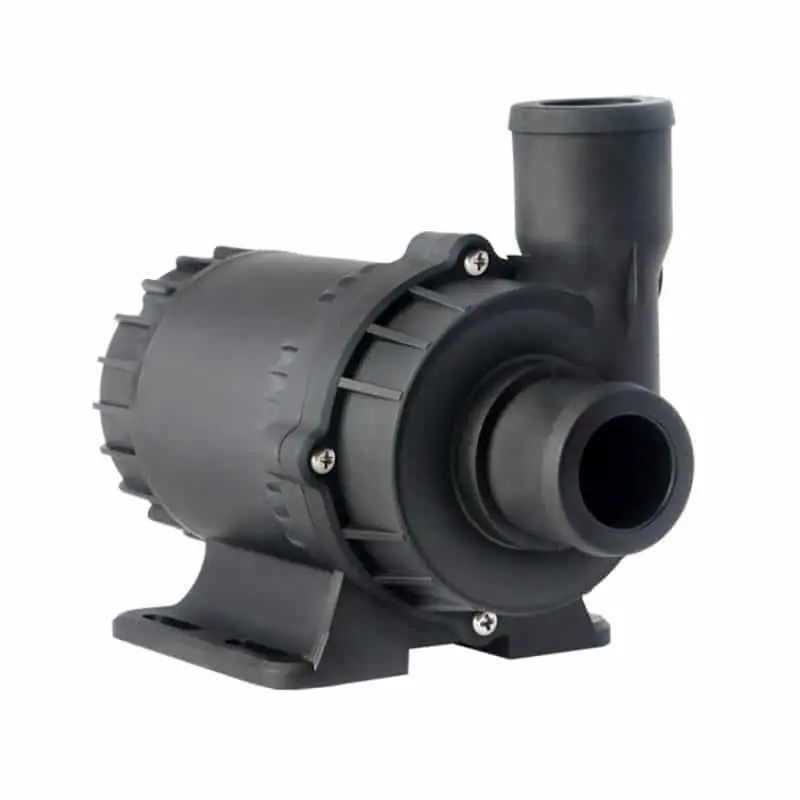

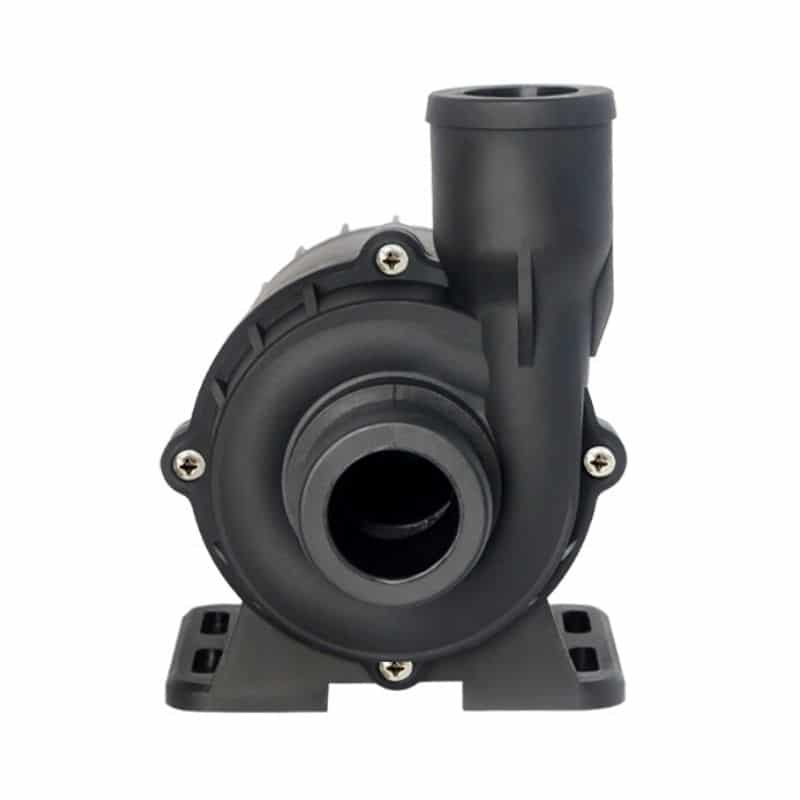

Pump Serie: DC80D

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions185mm*100mm*136mm
Weight2.1kg
Inlet Diameter38mm
Outlet Diameter38mm
Pump Shell MaterialPA66+30%GF (can be customized to other materials)

Technical Documentation

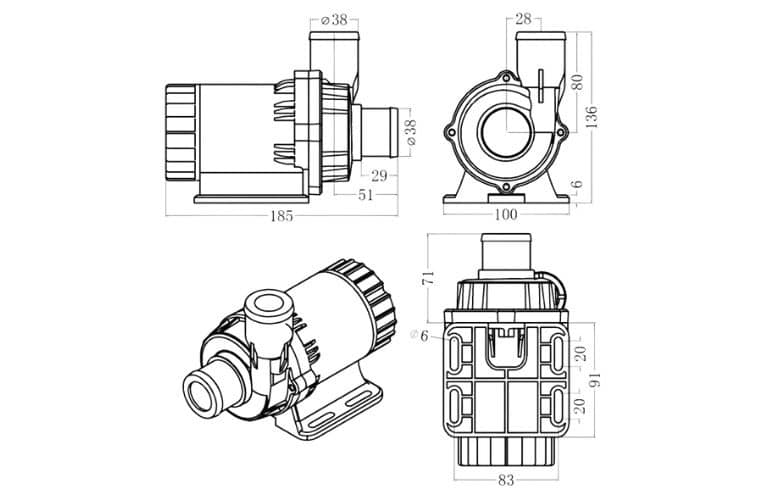

dc80d dimensions 767x499
Dimension Drawing

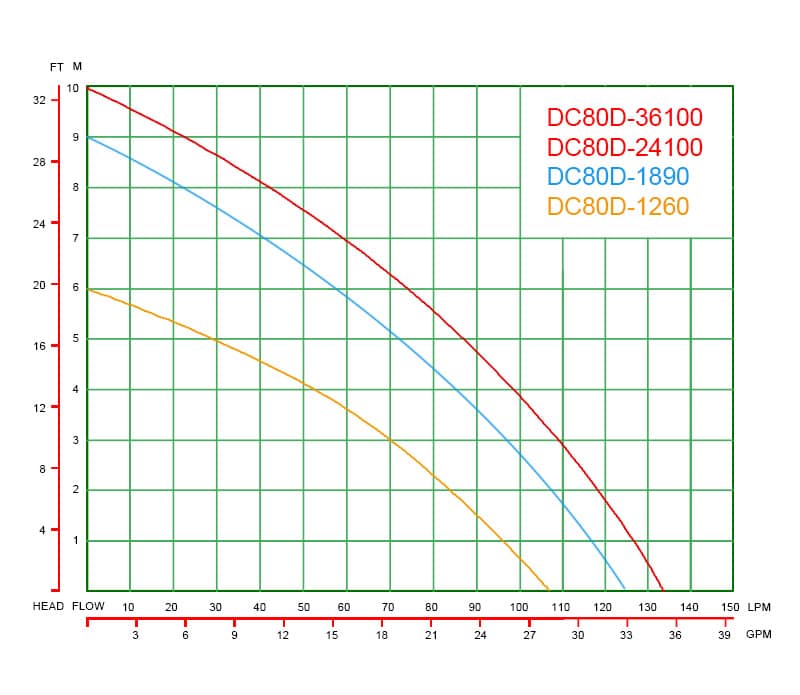

dc80d performance
Performance Curves

Available Models

DC80D-1260

  • Voltage: DC 12V
  • Max Head: 6 M
  • Max Flow: 6600 L/H
View Details →

DC80D-1890

  • Voltage: DC 18V
  • Max Head: 9 M
  • Max Flow: 7500 L/H
View Details →

DC80D-24100

  • Voltage: DC 24V
  • Max Head: 10 M
  • Max Flow: 8000 L/H
View Details →

DC80D-36100

  • Voltage: DC 36V
  • Max Head: 10 M
  • Max Flow: 8000 L/H
View Details →

DC80D-48100

  • Voltage: DC 48V
  • Max Head: 10 M
  • Max Flow: 8000 L/H
View Details →
