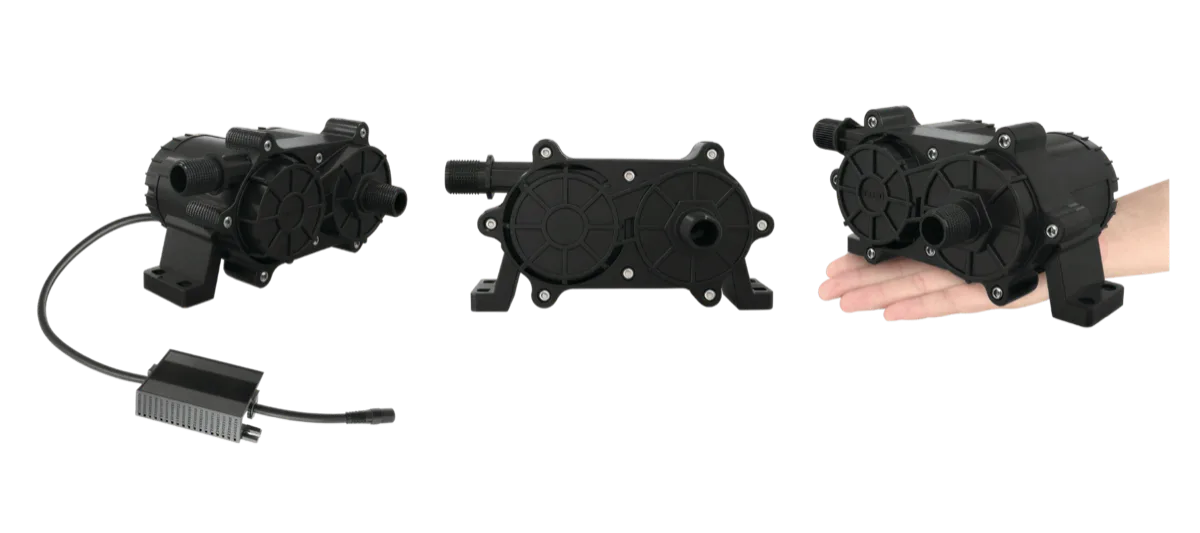

Pump Serie: DC65JE

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions194mm*103mm*134mm
Weight2.3kg
Inlet DiameterG1/2″ thread
Outlet DiameterG1/2″ thread
Pump Shell MaterialPPS & PA66+30%GF (can be customized to other materials)

Technical Documentation

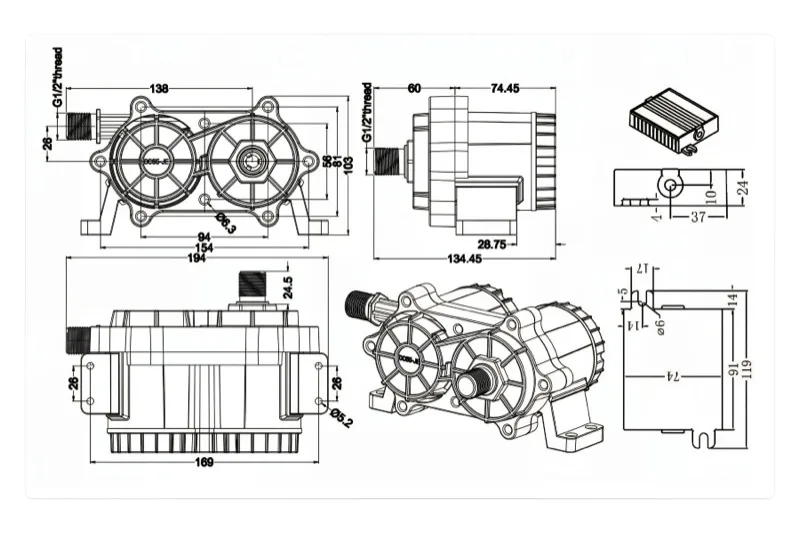

dc65je dimensions
Dimension Drawing

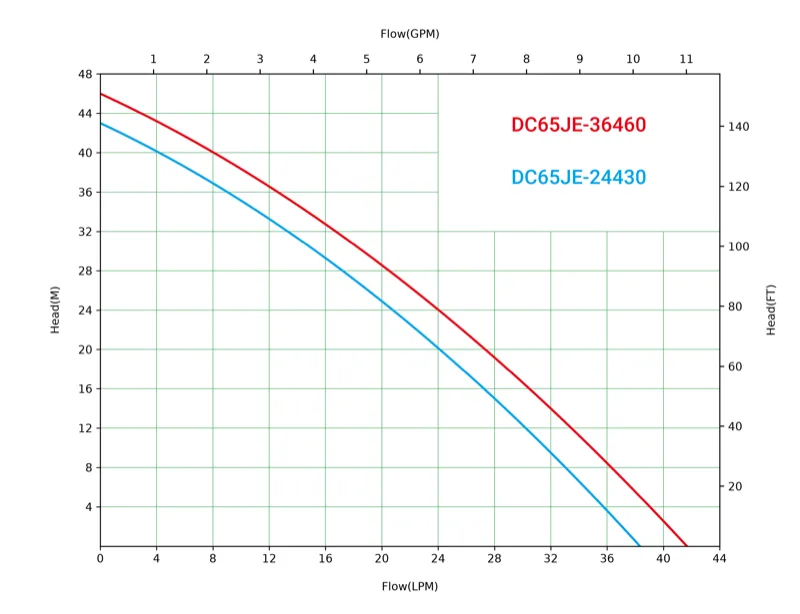

dc65je performance
Performance Curves

Available Models

DC65JE-24430

  • Voltage: DC 24V
  • Max Head: 43 M
  • Max Flow: 2300 L/H
View Details →

DC65JE-36460

  • Voltage: DC 36V
  • Max Head: 46 M
  • Max Flow: 2500 L/H
View Details →

Interested in DC65JE Series?

Contact our engineering team for custom specifications, samples, or bulk pricing.
