Pump Serie: DC65JB

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions194mm*103mm*134mm
Weight2.3kg
Inlet Diameter20mm
Outlet Diameter20mm
Pump Shell MaterialPPS & PA66+30%GF (can be customized to other materials)

Technical Documentation

dc65jb dimensions

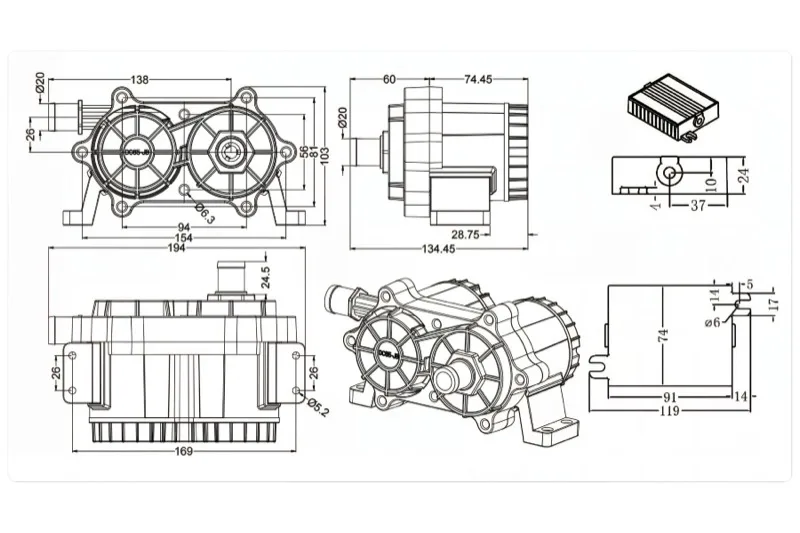

Dimension Drawing
dc65jb performance

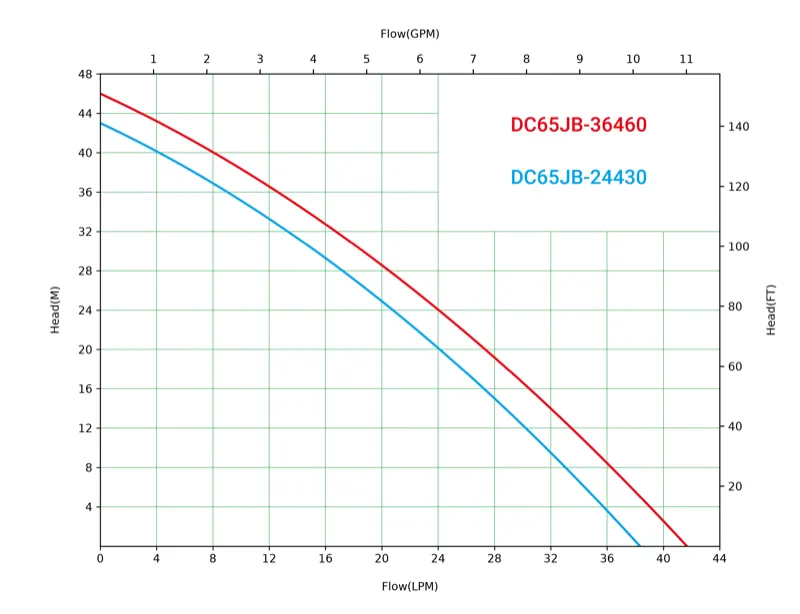

Performance Curves

Available Models

DC65JB-24430

  • Voltage: DC 24V
  • Max Head: 43 M
  • Max Flow: 2300 L/H
View Details →

DC65JB-36460

  • Voltage: DC 36V
  • Max Head: 46 M
  • Max Flow: 2500 L/H
View Details →
