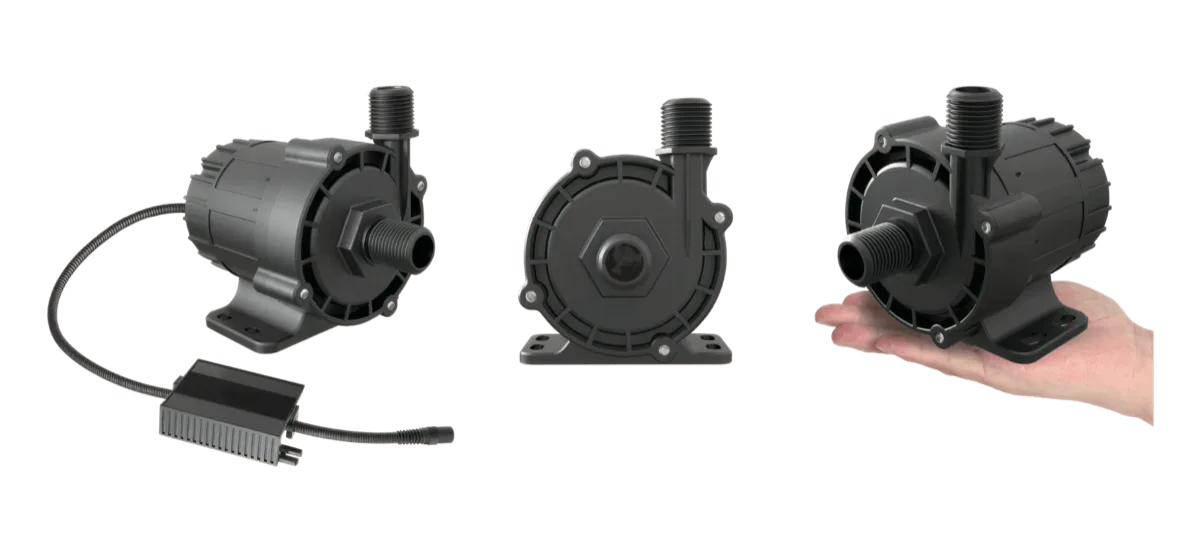

Pump Serie: DC65E

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions129mm*96mm*113mm
Weight1.3kg
Inlet DiameterG1/2″ thread
Outlet DiameterG1/2″ thread
Pump Shell MaterialPPS & PA66+30%GF (can be customized to other materials)

Technical Documentation

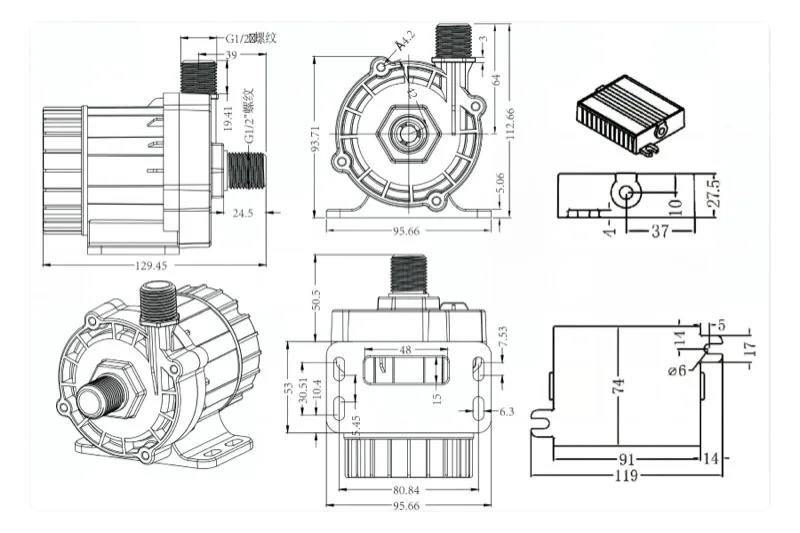

dc65e dimensions
Dimension Drawing

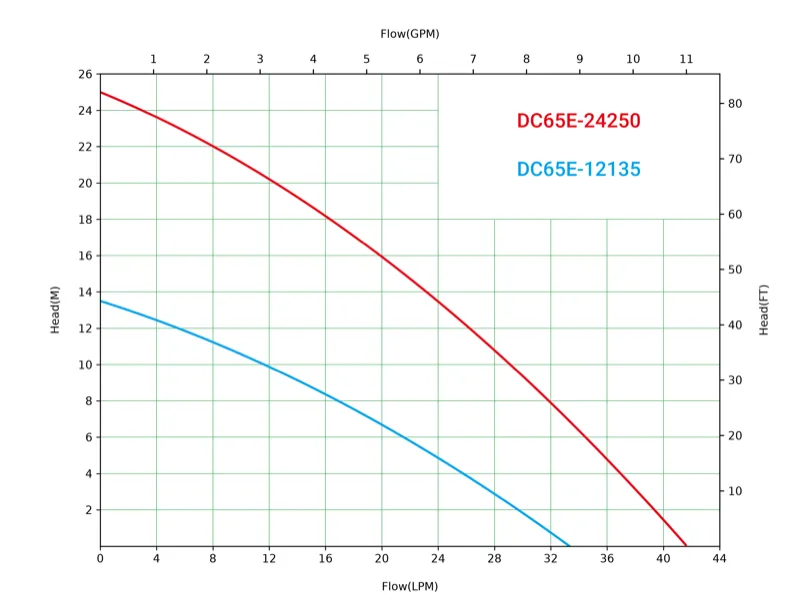

dc65e performance
Performance Curves

Available Models

DC65E-12135

  • Voltage: DC 12V
  • Max Head: 13.5 M
  • Max Flow: 2000 L/H
View Details →

DC65E-24250

  • Voltage: DC 24V
  • Max Head: 25 M
  • Max Flow: 2500 L/H
View Details →
