Pump Serie: DC65C

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions117.5mm*140mm*94mm
Weight1.3kg
Inlet DiameterG1/2″ thread
Outlet DiameterG1/2″ thread
Pump Shell MaterialPPS & PA66+30%GF (can be customized to other materials)

Technical Documentation

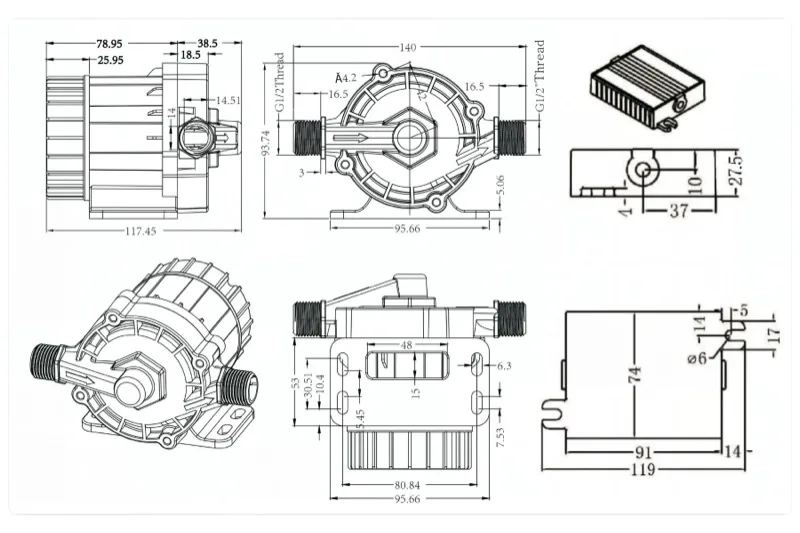

dc65c dimensions
Dimension Drawing

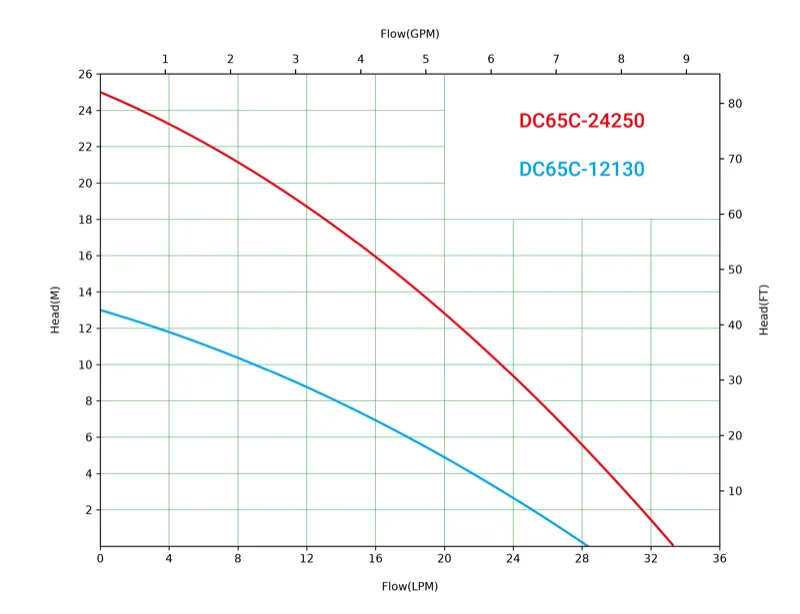

dc65c performance
Performance Curves

Available Models

DC65C-12130

  • Voltage: DC 12V
  • Max Head: 13 M
  • Max Flow: 1700 L/H
View Details →

DC65C-24250

  • Voltage: DC 24V
  • Max Head: 25 M
  • Max Flow: 2000 L/H
View Details →
