Pump Serie: DC45A

Download Datasheet (PDF) Ask a Quote

Series Specifications

Dimensions89mm*68mm*76mm
Weight0.3kg
Inlet Diameter12mm
Outlet Diameter12mm
Pump Shell MaterialPA66+30%GF (can be customized to other materials)

Technical Documentation

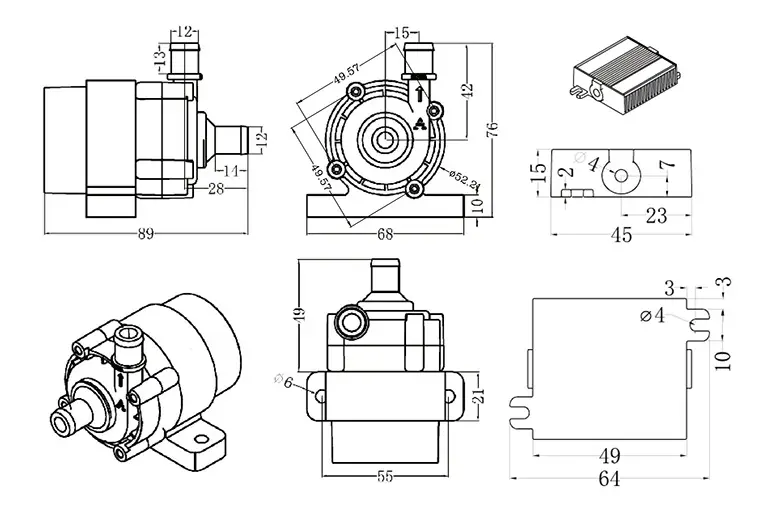

dc45a dimensions
Dimension Drawing

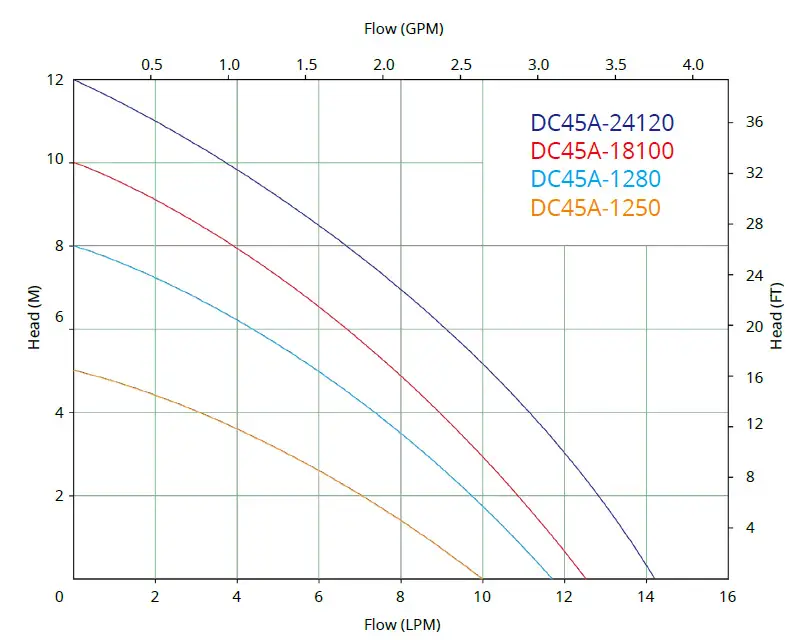

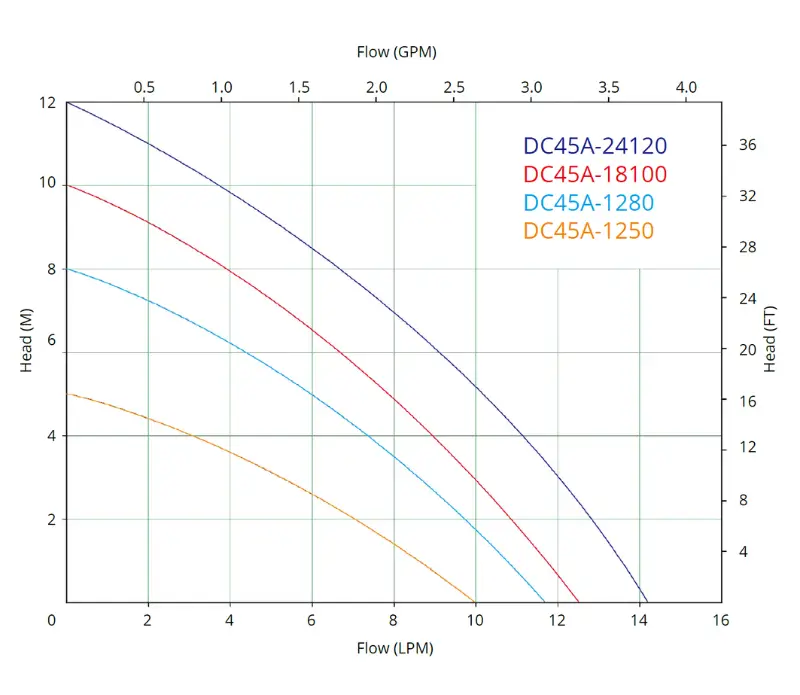

dc45a performance
Performance Curves

Available Models

DC45A-1280

  • Voltage: DC 12V
  • Max Head: 8 M
  • Max Flow: 700 L/H
View Details →

DC45A-18100

  • Voltage: DC 18V
  • Max Head: 10 M
  • Max Flow: 750 L/H
View Details →

DC45A-24120

  • Voltage: DC 24V
  • Max Head: 12 M
  • Max Flow: 850 L/H
View Details →
