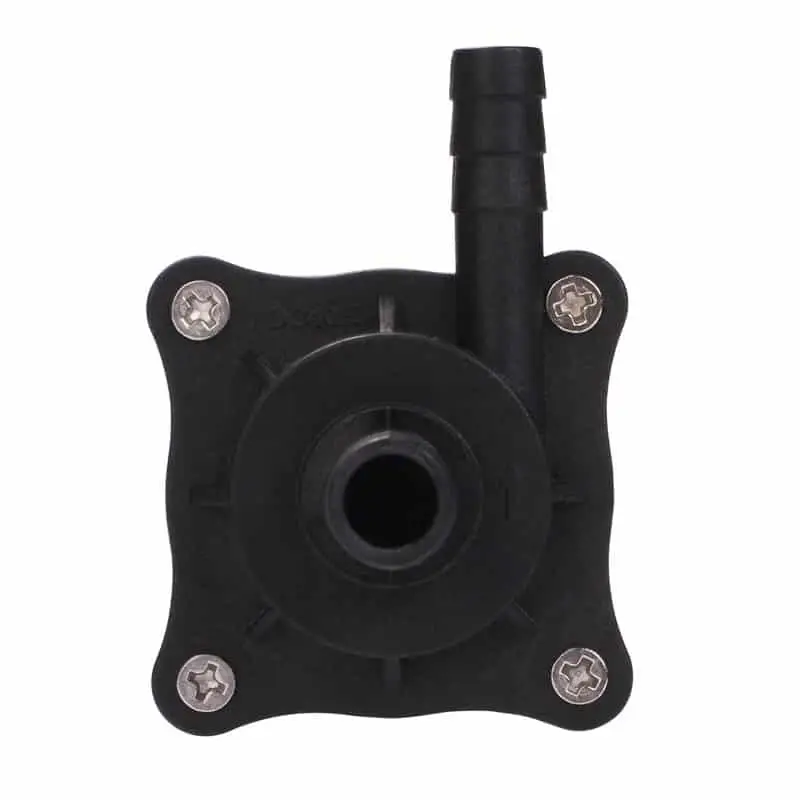

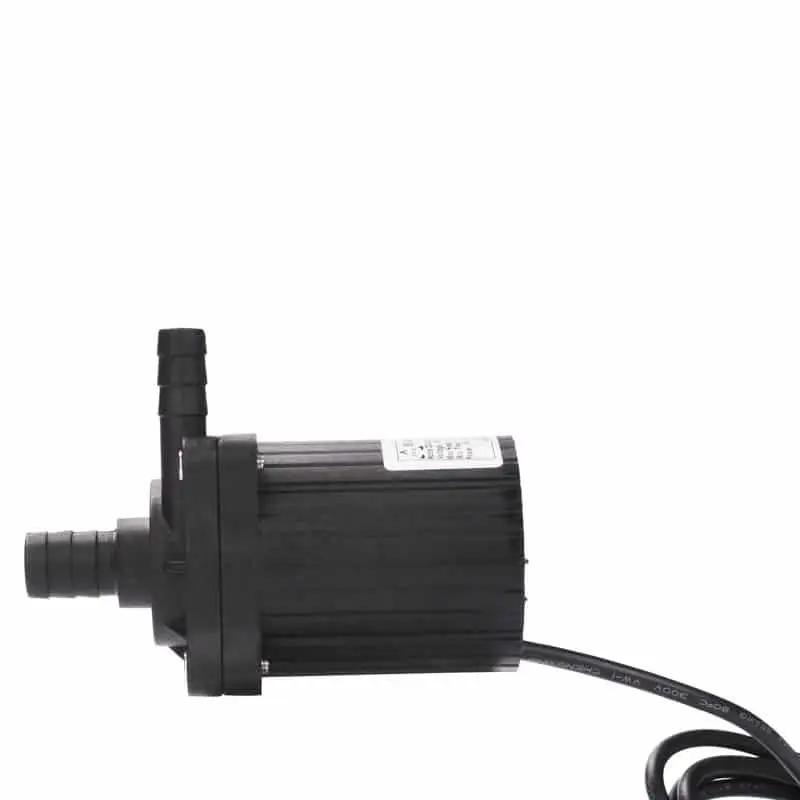

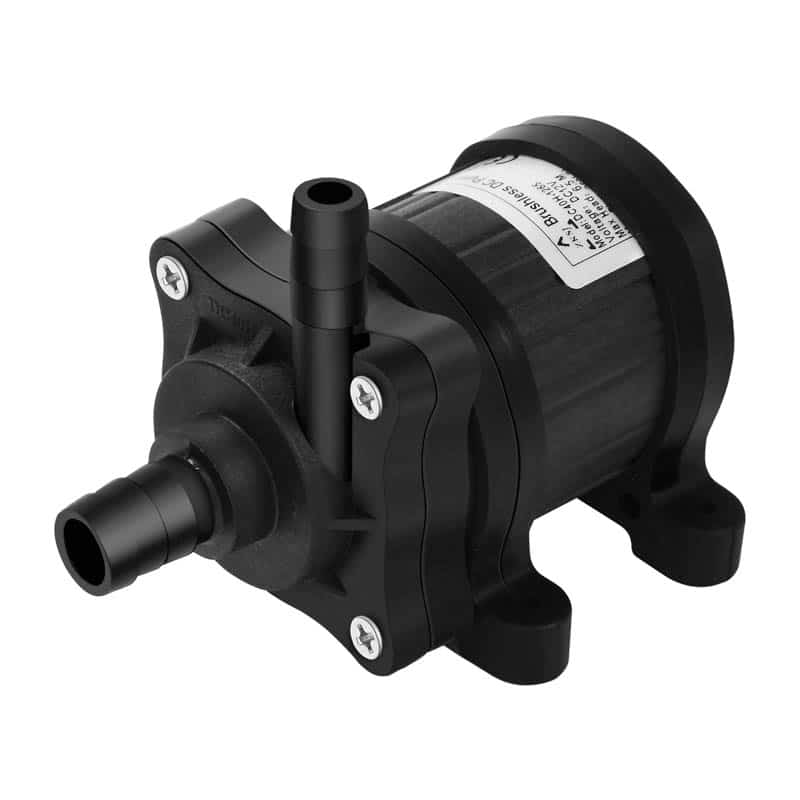

DC40H

Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service based on our skilled R&D team, workshop, and mold factory. Learn OEM Solution

Additional information

Rated Voltage

12V, 18V, 24V

Max Head

11M, 6.5M, 9M

Max Flow

360L/H, 420L/H, 450L/H

Inlet Diameter

11mm

Outlet Diameter

8mm

Dimensions

84.5×61.8×43.8mm

Noise

~40dB

Liquid Temperature

-40-60°C

Sub-Model List

MODELVOLTAGE(V)CURRENT(A)MAX FLOW(L/H)MAX HEAD(M)
DC40H-1240120.52704
DC40H-1265121.23606.5
DC40H-1890181.24209
DC40H-2490240.94209
DC40H-24110241.245011

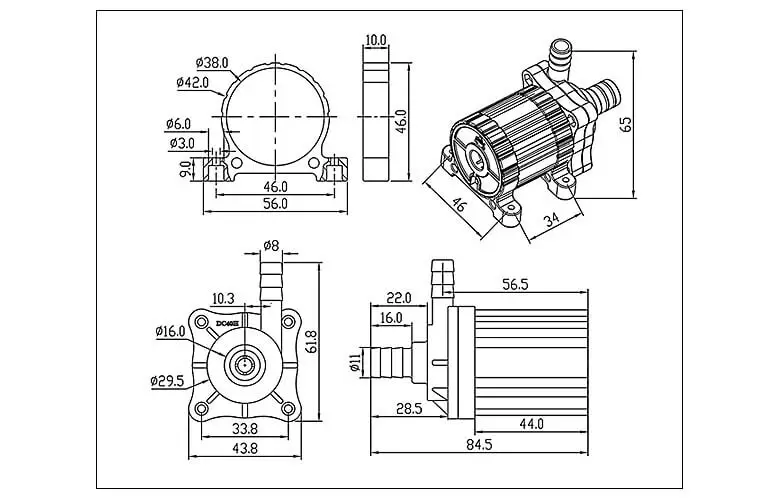

Dimensions

DC40H-6

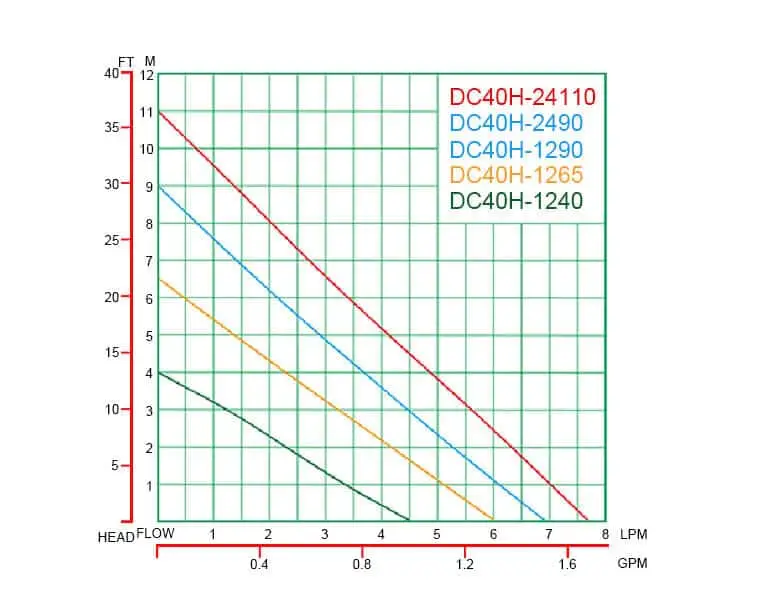

Performance Curve

DC40H-7
